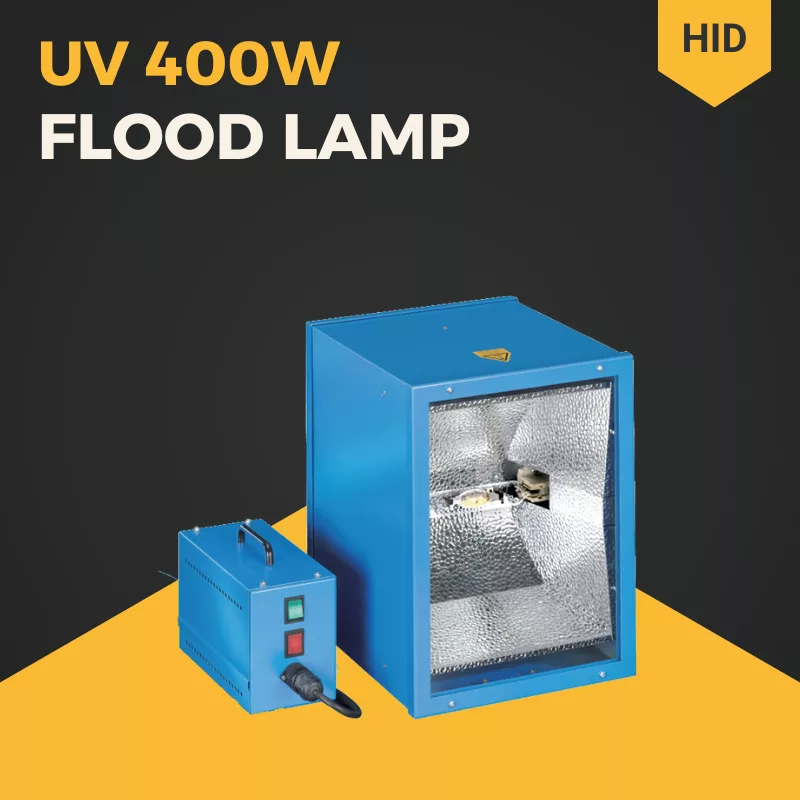

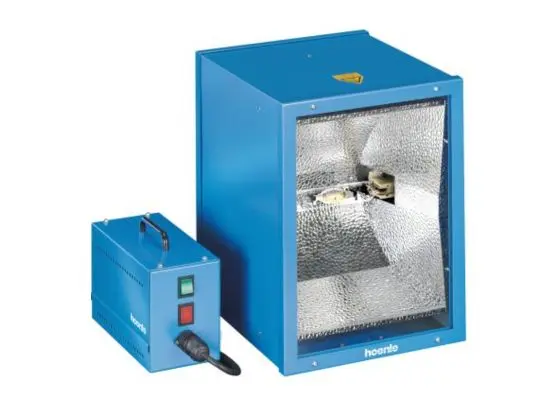

UV 400W Flood Lamp
Modular UV flood lamp for curing, bonding and drying applications
- High UV output – choice of UV bulbs and filters.
- Modular design for large area curing.
- Worldwide delivery – contact us for shipping costs.
Description
UV bulb options
The UV lamps offer outstanding power yield with long lamp life.
- Iron (Fe)
- Gallium (Ga)
- Mercury (Hg)
Modular design
With several units combined larger areas can be exposed with high UV efficiency and uniformity throughout the irradiation field. Even irradiation of extruded continuous products is possible. For this purpose the UV flood lamps are mounted in triangular or even hexagonal positions.
Applications and uses
- Curing of adhesives, inks, varnishes and coatings.
- Bonding of glass, metal and plastics.
- UV irradiation for chemical and biological applications.
Technical data
- Supply voltage: 230 V / 50 Hz
- Power input: 430W
- UV lamp head dimensions: 222 x 265 x 220 mm
