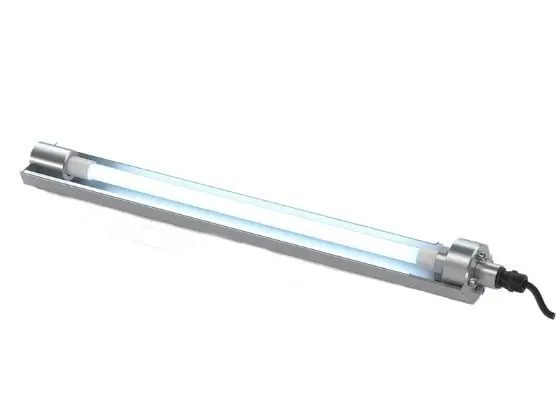

FR-Series
High performance for effective surface disinfection.
- High UV-C output at 254 nm
- Various lengths available
- Compact, stainless steel design
- Optional shatterproof coating
- Extended UV-C lamp life (16,000 hours)
- Worldwide delivery available
Description
Technical Specification
FR-Series modules pair UV-C emitters with a high-performance (HPF) reflector, concentrating radiation precisely where it’s needed. This maximizes microbial inactivation even under demanding production conditions, without increasing energy consumption. Nine sizes cover conveyor systems, packaging lines, proofing cabinets and OEM machine building, so the module length can match your exact application.
Models and options
| Model | Dimensions | Power | Requirements | Weight |
| FR 300 | 342 x 64 x 54 mm | 13 W | 230V ± 10% (50 – 60Hz) | 1.15 Kg |
| FR 400 | 442 x 64 x 54 mm | 18 W | 230V ± 10% (50 – 60Hz) | 1.25 Kg |
| FR 500 | 542 x 64 x 54 mm | 23 W | 230V ± 10% (50 – 60Hz) | 1.35 Kg |
| FR 600 | 642 x 64 x 54 mm | 29 W | 230V ± 10% (50 – 60Hz) | 1.4 Kg |
| FR 700 | 742 x 64 x 54 mm | 35 W | 230V ± 10% (50 – 60Hz) | 1.7 Kg |
| FR 810 | 852 x 64 x 54 mm | 40 W | 230V ± 10% (50 – 60Hz) | 1.8 Kg |
| FR 1000 | 1042 x 64 x 54 mm | 50 W | 230V ± 10% (50 – 60Hz) | 2.2 Kg |
| FR 1200 | 1242 x 64 x 54 mm | 61 W | 230V ± 10% (50 – 60Hz) | 2.6 Kg |
| FR 1500 | 1542 x 64 x 54 mm | 77 W | 230V ± 10% (50 – 60Hz) | 2.8 Kg |
