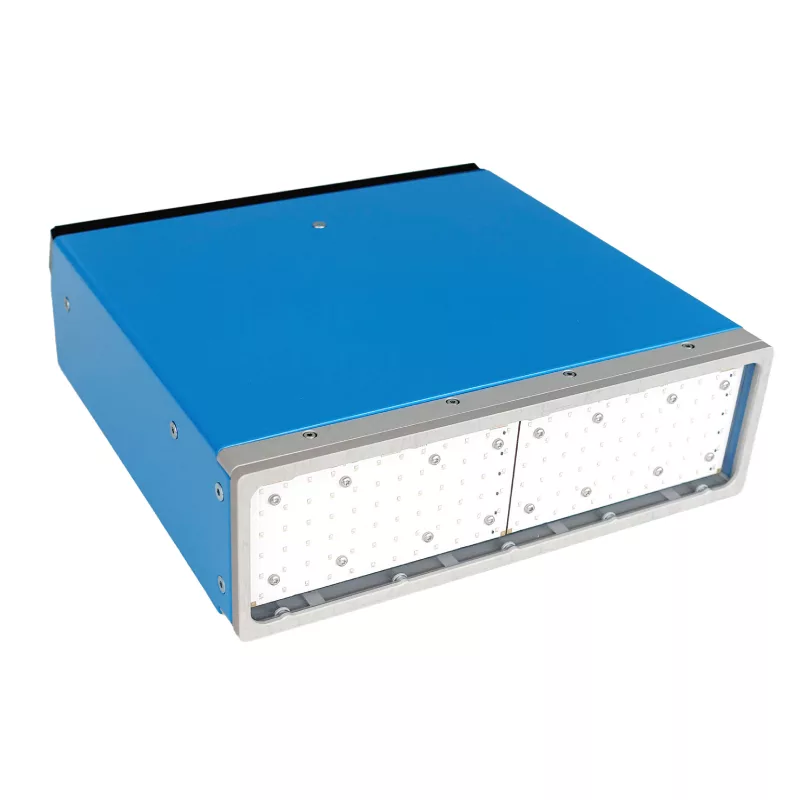

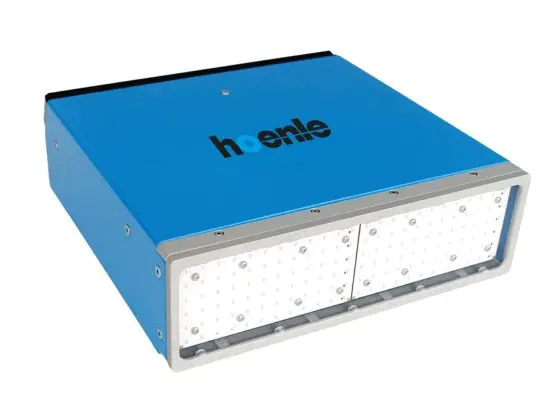

UV LED Spot 200
UV LED with 200 mm x 50 mm curing area
The UV LED Spot 200 is ideal for adhesive curing applications requiring a compact flood unit. The LED array and electronic power control produce high intensity and homogeneous UV light, making it the ideal solution for quick and reliable curing of UV adhesives and coatings.
- Available with standard or high output.
- Uniform intensity distribution.
- LED head dimensions: 203 (H) x 63 (D) x 205 (W)
- Choice of spectral output (365, 385, 395 or 405 nm).
- Worldwide delivery – contact us for shipping costs.
Request further information or pricing
Join us for a free UV safety webinar, designed to help you understand the legal requirements around the use of artificial UV light equipment in the workplace.
Description
A comprehensive monitoring function with LED malfunction recognition provides the highest level of process control. Even the shortest cycle times are repeatable in fully automated production lines with the UV LED Spot 200.
The typical service life of an LED is more than 20,000 hours. The UV LED Spot 200 can be switched on and off as often as necessary. It does not require a warm-up or cooling phase.
The LED Spot 200is available in the wavelengths 365, 385, 395 or 405 nm. This permits optimal matching of curing spectra with the absorption parameters of the UV adhesive or coating.
The square light-emitting aperture has a size of approx. 200 mm x 50 mm. This compact design allows the integration of this small-sized LED flood unit in tight spaces.
An integrated fan provides adequate cooling for continuous operation. Thanks to an optimized air flow there are no negative impacts on the process.
For integration into an automated production process, the LED Spot 200 head can be powered and controlled by an external PLC associated with the automated process.
Special features:
- Integrated controller in each LED module.
- Continuous monitoring of the LED segments regarding short-circuit, interruption and excess temperature.
- Recording of the operating hours.
- Analogue dimming of the LEDs via a 0-10 V-signal.
- Digital PLC interface (LED enable, LED on, LED error).
The UV LED Spot 200 is appropriate for various UV curing applications, such as:
- Bonding or encapsulating of components in the electronic, optical or medical devices industries.
- Fluorescence stimulation for materials testing; also suitable for automatic image processing.
- High intensity UV irradiation in the chemical, biological and pharmaceutical sector.
Maximum UV irradiance levels:
- 365 nm: 2,000 mW/cm2
- 385 nm: 2,300 mW/cm2
- 395 nm: 3,000 mW/cm2
- 405 nm: 4,000 mW/cm2
UV measurements were taken at the LED surface.
