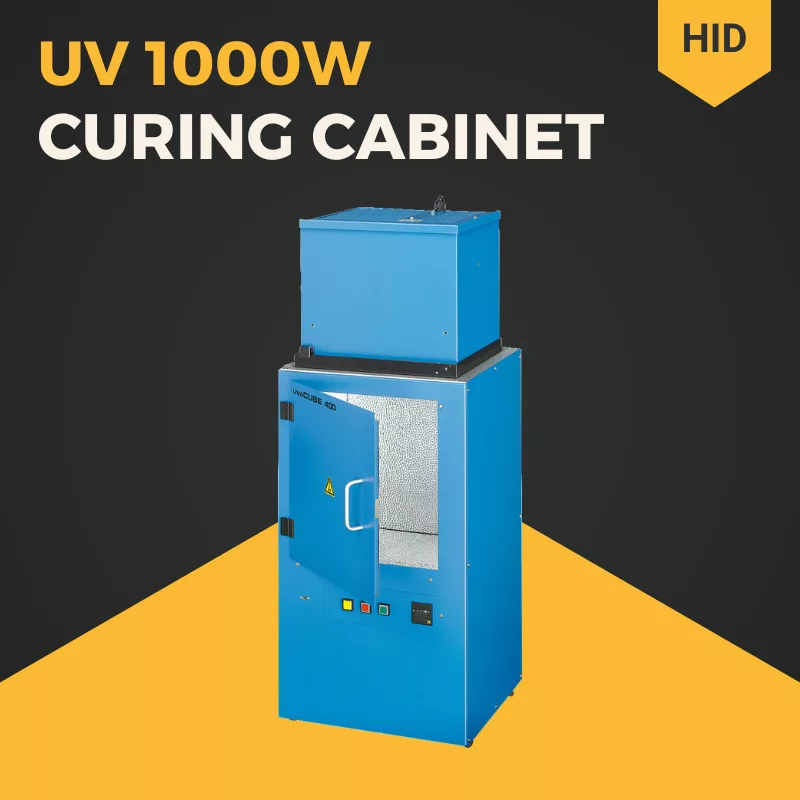

UV 1000W Curing Cabinet
Enclosed UV curing cabinet for curing and bonding
- High UV output – choice of UV bulbs.
- Internal dimensions 450 x 400 x 300 mm.
- Timer operated shutter.
- Worldwide delivery – contact us for shipping costs.
Contact us for price and availability
Join us for a free UV safety webinar, designed to help you understand the legal requirements around the use of artificial UV light equipment in the workplace.
Description
The UV 1000W Curing Cabinet is an UV curing chamber for laboratory use and manufacture by hand. Through combining different UV units like direct irradiation or ACM mirror for temperature reduction, and lamps, it can be used for a large variety of applications and offers individual process solutions. The power and timer pre-set are offering high process reliability. In addition, the UV 1000W Curing Cabinet meets the highest demands in operational safety and ease of handling.
The standard supply of the timer controlled shutter is for exposure periods from 1 second to 9 minutes 59 seconds. An option is for this timing range to be from 1 minute to 9 hours 59 minutes. An acoustic device signals the end of irradiation.
There are, at a two-step power control (50-100%), up to 2000 W lamp power for three different arc length available: 100 mm, 150 mm and 200 mm and arc power output up to 200 W/cm, 133 W/cm and 100 W/cm.
UV bulb options
UV lamps offer outstanding power yield with long lamp life.
- Iron (Fe)
- Gallium (Ga)
- Mercury (Hg)
Applications and uses
- Curing of adhesives, inks, varnishes and coatings.
- Bonding of glass, metal and plastics.
- UV irradiation for chemical and biological applications.
Technical data
- Supply voltage: 230 V / 50 Hz
- Power input: 1000W
- Irradiation area: 400 x 300 mm
- Dimensions (L x W x D): 834 x 466 x 402 mm
Safety of operation is provided through interlocking. The door is locked when the shutter is open and the shutter is locked when the door is open.
