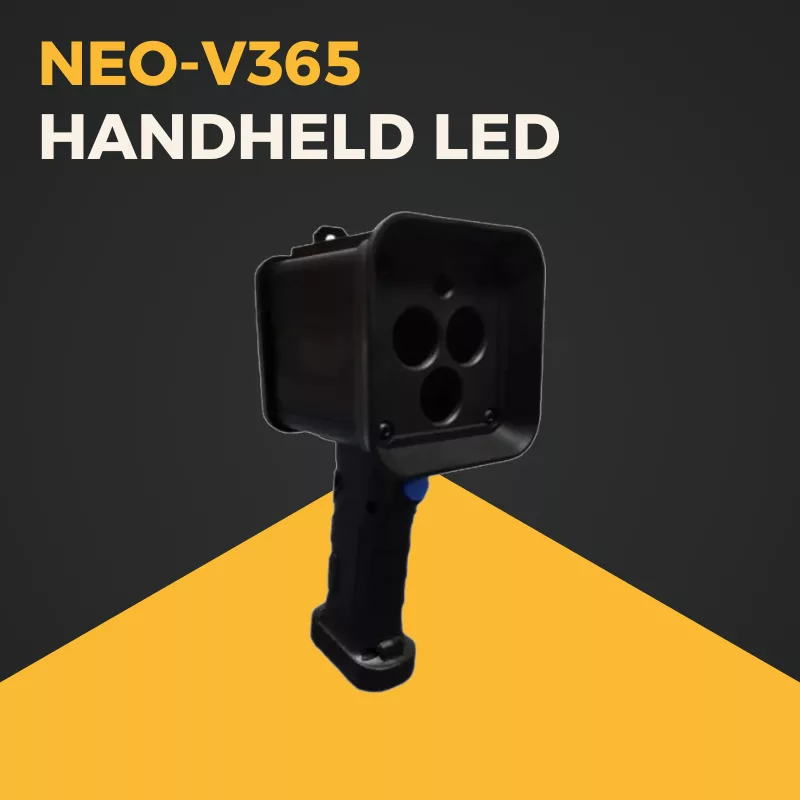

NEO-V-365

Description

ASTM E 3022, RRES 90061 and Airbus AITM6-1001 Certified

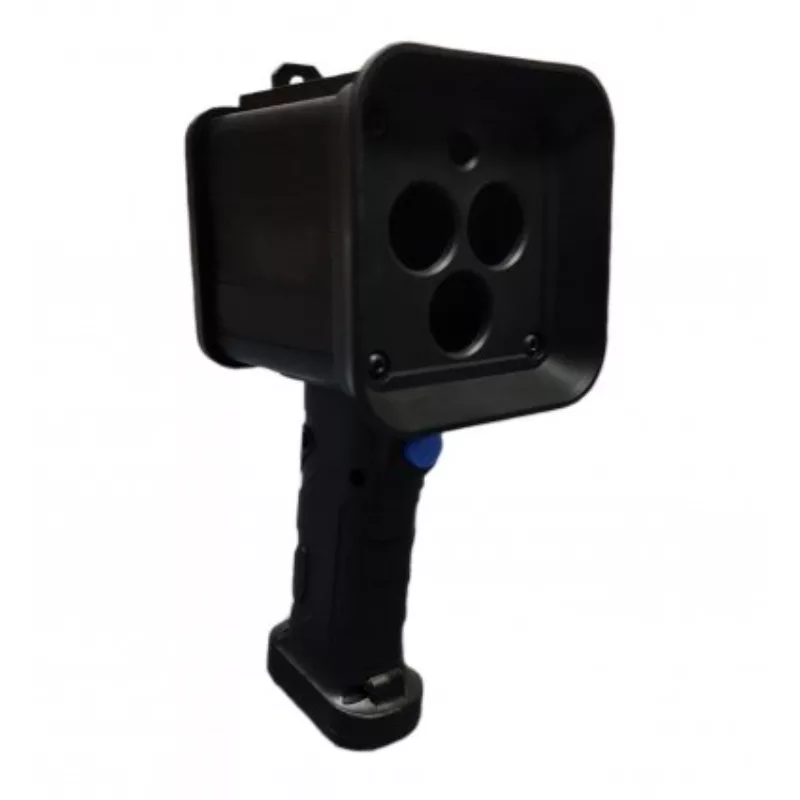

The NEO-V365 is a UV inspection lamp designed for use in the Non Destructive Testing (NDT) sector and is certified with all major NDT standards including ASTM E 3022, RRES 90061 and Airbus AITM6-1001.

The NEO-V365 emits UV-A light with a peak wavelength of 365 nm which makes it ideal for undertaking Magnetic Particle Inspection (MPI) and liquid Dye Penetrant Inspection (DPI).

While the NEO-V365 is primarily designed for use in NDT, 365 nm light is suitable for many sectors including medical laboratories, crime laboratories, passport and currency checking, forensics, UV curing, leak detection and others where fluorescent inspection takes place.

Mains and Battery Operation

The NEO-V365 is a mains operated unit but has the versatility to be operated by battery if and when required.

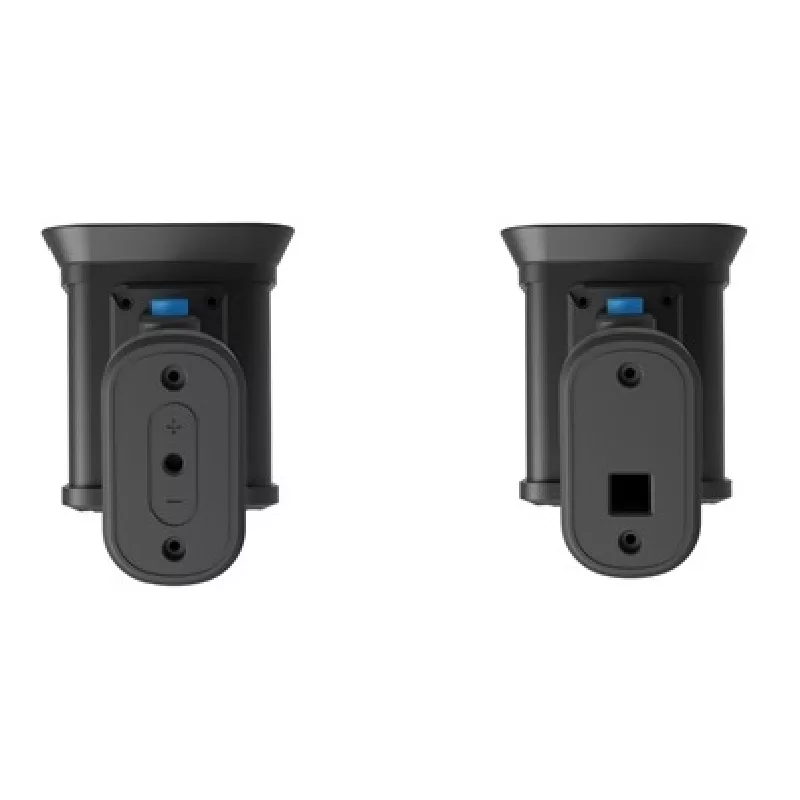

The NEO-V365 kit includes two cover plates as standard – For mains operation a cover plate incorporating a square mounting peg hole is used. For battery operation the mains cover plate is removed, rechargeable Li-ion batteries are inserted into the handle and the other cover plate with the + and – sign (donating battery polarity) is used.

The batteries can be charged without removing them by connecting the mains cable to the rear of the unit. Typically the NEO-V365 will operate for 2 to 3 hours continuously on a single charge and take 4 to 5 hours to recharge. The indicator light on the rear of the unit is red while the unit is charging but will turn green once the unit is fully charged.

​ ​For NADCAP compliance the batteries should be removed when using the unit in mains mode. It is also advised to confirm which NDT standard is being worked to and whether certification allows for battery operation prior to work being undertaken.

Switchable UV and White Light

The NEO-V365 Inspection Lamp features 3 LED array with internal optics and black filter lenses to produce a high intensity UV-A uniform beam with no hot spots. In addition the unit also features a switch selectable white light mode for visual inspection under white light.

When operating the white light keep in mind that dark vision (scotopic vision) is lost. Therefore it is recommended to wait a minimum of 30 seconds after white light use to recover dark vision before undertaking any observations using UV light.

Standard Compliance

General NDT UV-A Specifications	Fluorescent Penetrant Specifications	Fluorescent Magnetic Particle Specifications
ASTM E 3022-18 ASTM E 3024-22a ISO 3059: 2012 RRES 90061 (10-2014) (Mains Only)*	ASTM E 1417-21e1 ISO 3452: 2021 Airbus AITM6-1001 (Issue 12) (Mains Only)*	ASTM E 1444-21 ISO 9934 ISO 9934: 2016 Airbus AITM6-2001 (Issue 4) (Mains Only)*

*Conformity only valid for mains operation for RRES 90061, Airbus AITM6-1001 and Airbus AITM6-2001. Certification for these standards provided on request free of charge.

Versions Available

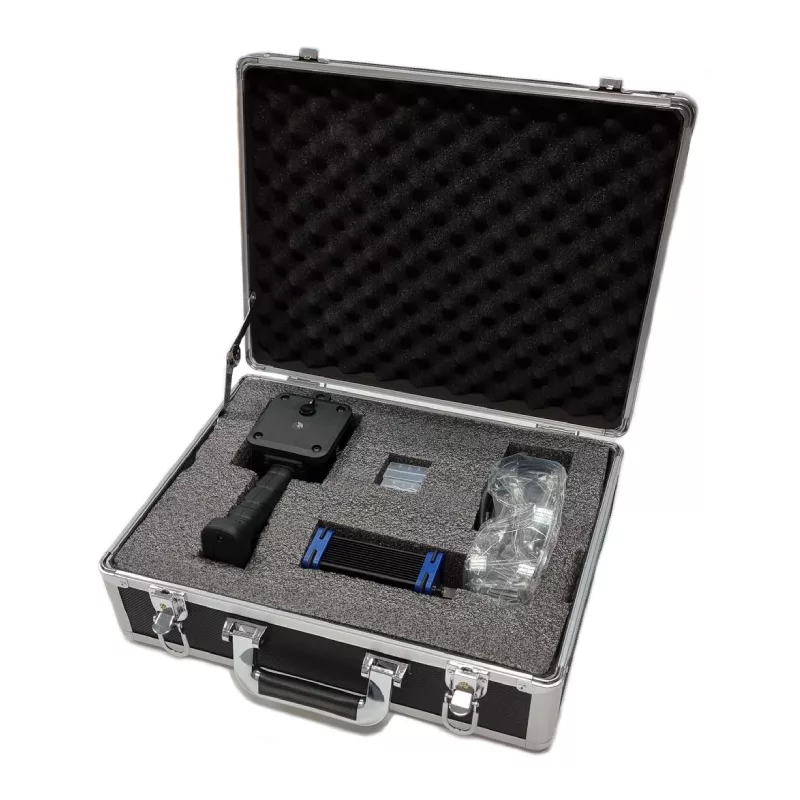

Neo-V-365 (UK)	1 x Neo-V-365 (Lamp) 1 x Power Adaptor (UK Plug) 1 x Cover Plate (Mains) 1 x Cover Plate (Battery) 1 x Cover Plate Tool 1 x Plastic Carry Case 1 x UV Absorbing Protective Glasses 1 x Operator Manual (ENGLISH) 1 x Certificate of Conformity (ENGLISH) 2 x Li-ion Battery, 3.7V (3400mAh)
Neo-V-365 (EU / Int’l) Batteries NOT included as standard	1 x Neo-V-365 (Lamp) 1 x Power Adaptor (EU Plug/Local Adaptor) 1 x Cover Plate (Mains) 1 x Cover Plate (Battery) 1 x Cover Plate Tool 1 x Plastic Carry Case 1 x UV Absorbing Protective Glasses 1 x Operator Manual (ENGLISH) 1 x Certificate of Conformity (ENGLISH)



Note: For ease of shipping internationally the Neo-V-365 (EU / Int’l) does not include batteries as standard (unless otherwise requested). The type of batteries used in the Neo-V-365 are readily available in most international markets.

Technical Specification

Light Source	3 x UV LED 1 x White LED
Peak Wavelength	365 ± 5 nm
Intensity (@ 380mm)	> 4300 μW/cm²
Visible Light	< 5 lux
Coverage Area / Beam Profile (@ 380mm)	230 mm (> 1000 μW/cm²) 270 mm (> 200 μW/cm²)
UV-B	0 μW/cm²
UV-C	0 μW/cm²
Battery Data	Li-ion Battery, 3.7V (3400mAh) – 2 OFF
Working Period (Full Charge)	2-3 Hours
Charging Period	4-5 Hours
Power	12 Watts (UV) 3 Watts (White)
Weight	785g
Wavelength Drift (@ Elevated Temp.)	≤ 5 nm
Full Width @ Half Maximum (FWHM)	≤ 15 nm
Longest Wavelength @ Half Maximum (LWHM)	≤ 377 nm
± Width @ Half Maximum	≤ ± 8 nm
Full Width @ 10% Maximum (FW10%)	≤ ± 25 nm
± Width @ 10% Max.	≤ ± 12 nm
Operational Temperature Range	5 to 50 °C
Max. Housing Temp. @ 25 °C Ambient	40 ± 2 °C
Ingress Protection (IP Rating)	IP 65
Input Supply (Lamp)	12V, DC
Input Supply (Power Adaptor)	100-240V, AC (50-60Hz)
Output Supply (Power Adaptor)	12V, DC
Warranty	12 Months
Quality Marks	UKCA, CE, RoHS
