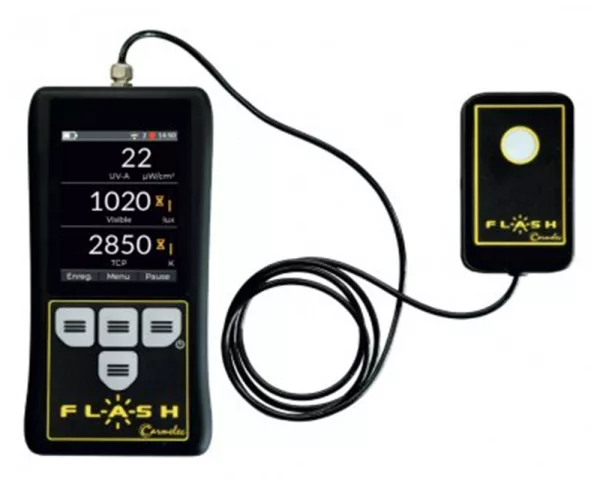

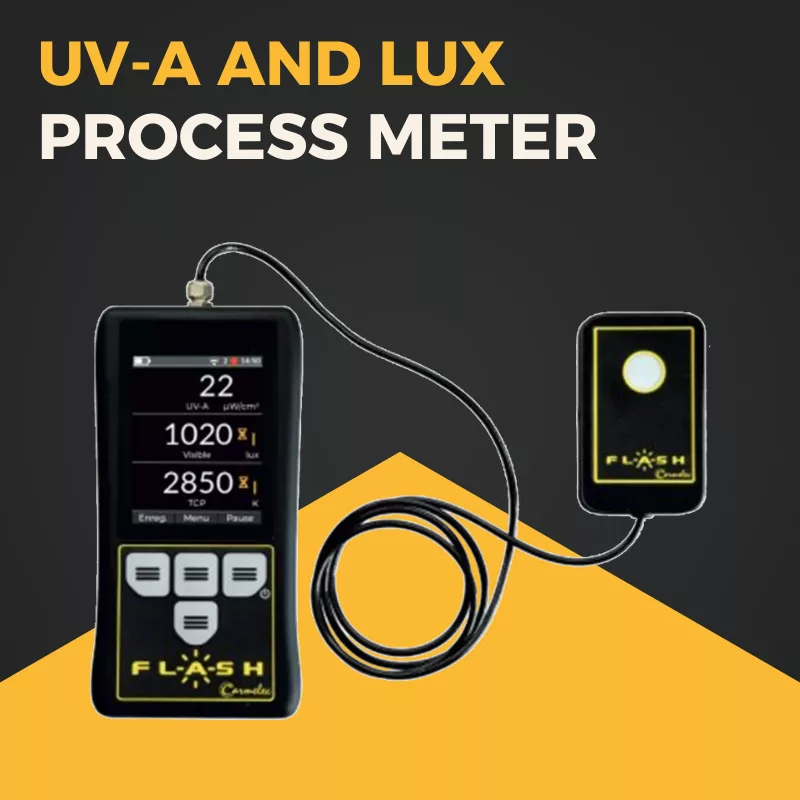

Flash NDT Light Meter
Dual 365nm UV-A and White Light Meter
Radiometer for measuring UV intensity and white light levels when undertaking Magnetic Particle Inspection (MPI) and liquid Penetrant Testing (PT) methods of Non-Destructive Testing (NDT).
- 3-in-1 device which uses a single probe to measure UV-A light (Radiometer), white light (Luxmeter) and colour temperature (Thermocolorimeter).
- Internal memory for recording results and the ability for operators to access measurements and recordings remotely via USB and Wi-Fi interfaces as standard.
- Developed according to ISO 3059 and ASTM E2297 / E3022 standards.
- Supplied with a certificate of calibration.
- Worldwide delivery – contact us for shipping costs
Description
Measurement Characteristics
| Range | Resolution | Units | |
| White Light | 0 to 6,000 lux | 0.1 lux | lux fc |
| UV Light | 0 to 20,000 μW/cm² | 1 μW/cm² | μW/cm² mW/cm² W/cm² |
| Colour Temperature | 2,000 to 8,000 K | 50 K | K |
Features
| Display | 2.8 Inch Colour Screen |
| Dated Measurements Feature | Time stamped measurements if enabled |
| Language Options | English French |
| Operator User Levels | Enabled or disable certain features dependant on user / operator |
| Selectable Readings | User can choose which values to display |
| Automated Measurements | Can be integrated into an automated processes / lines |
Mechanical and Environmental Characteristics
| Operating Temperature | 10 to 50 °C |
| Dimensions (Housing) | 140 x 71 x 35 mm |
| Dimensions (Probe) | 72 x 44 x 16 mm |
| Weight (with batteries) | 300 g |
| Ingress Protection Rating | IP54 |
Electrical Specification
| Battery Type | 3 x AA Rechargeable Batteries |
| Connection Type | Port USB-C (5 V) |
| Typical Battery Life | 35 Hours |
Connectivity
| Wireless Connection | Wi-Fi IEEE 802.11 b/g/n – 2.4 GHz |
| Wired Connection | USB-C – Virtual Serial Port |
| Data Recovery | USB Mass Storage |
Designed with NDT in mind
The Flash Light Meter was designed to be the only light meter / radiometer an NDT operator would ever need. The Flash utilizes data processing algorithms which makes verification of inspection lighting and ambient background light fast and ensures compliance with NDT standards is maintained, including ISO 3059 and ASTM E2297 / E3022.
